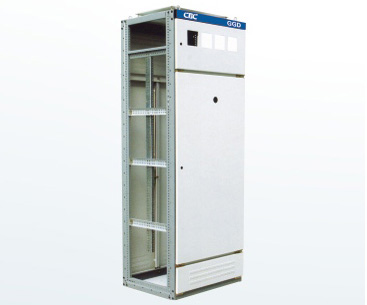

GGD低壓配電柜柜體
型號：GGD低壓配電柜柜體
顏色：駝皺
規格：800*2200*600
材質：鍍鋅板
高壓開關柜廠家的產品特點（包含產品介紹，詳細參數及特色等）
產品采用冷軋鍍錫板制作，做噴塑防腐處理，構架用8MF冷彎鋼局部焊接組裝而成。主開關采用正泰電器HD系列開啟式刀開關，回路開關是正泰電器NM1系列塑殼斷路器，分開關與總開關連接使用銅排連接，每個回路開關都配有電流互感器，考核每個用電設備的運行狀態。
Color camel wrinkle
Specification 800*2200*600
Materia galvanized sheet
Product Features (including product descriptions, detailed parameters and characteristics, etc.)
The product is made of cold rolled tinned sheet with spray preservative treatment, 8MF cold-formed steel frame assembled with local welding. Chint HD series open-type knife switch is used as main switch, circuit switch is Chint NM1 series MCCB, branch switch and the main switch are connected with copper bar, each circuit switches are equipped with current transformers to assess the running state of each electrical equipment.
Cabinet is assembled with aluminized zinc plates after CNC machining, protection grade reaching IP3X, with reliable mechanical interlock to prevent misuse and maloperation.
